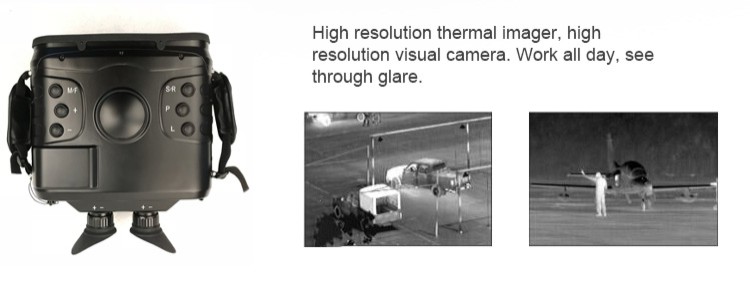

Infrared Thermal Imaging Binoculars With Electronic Compass Laser Ranging Functions

Name: Infrared Thermal Imaging Binoculars With Electronic Compass Laser Ranging Functions
Brand: OEM, ODM All Available
Price: 1 USD

China Infrared Thermal Imaging Binoculars With Electronic Compass Laser Ranging Functions wholesale

Place of Origin : China

Brand Name : OEM, ODM All Available

Certification : CE,FC,RoHS

MOQ : 10

Delivery Time : 3~7

Payment Terms : T/T. L/C, Western Union, Money Gram

Supply Ability : 30000PCS/Month

Color : Black

Weight : 8kg

Magnification : 8X Optical Magnification

Keywords : cooled Long Range Military Binoculars

Focal Length : F#4.0

Feature : Multi-function

Cool down type : <6min

GPS accuracy : ≤10m.

Contact Now

Infrared Thermal Imaging Binoculars With Electronic Compass And Laser Ranging Functions

Parameter:

Specification of cooled thermal imaging binocular
Sensor type	cooled FPA
Resolution	320*256
Wavelength	3-5μm
Pixel pitch	30μm
NETD	25MK./@25℃
MRTD	≤0.18K
Frame rate	50HZ
Cool down type	<6min
Lens	f=20-200mm F#4.0
Focus	Auto/manual
FOV	2.75°x2.2°~18.3°x14.7°
Electronic zoom	1x~4x
Image control	White/black polarity;auto,manual gain,
Day/Night imaging
Sensor type	1/2' Low luminance camera
Resolution	720TVL
Frame rate	25HZ
Lens	f=50mm
Focus	f=50mm
Working luminance	0.001lux
Display
Display type	OLED
Resolution	1024x768
Reticles luminance	Customized
GPS
GPS	GPS,SNMS
GPS accuracy	≤10m.
Target geolocation	opitions
DMC
Type	Digital Compass
Accuracy	≤1°(Heading)
LRF
Type	1.54μm
Eye safe	Eye safe Class1
Min.distance	100m
Max.distance	5Km(atmosphere visibility>3.5km)
Accuracy	≤2m
Frequency	20ppm
System
Standby	Yes
Video out	BNC PAL
Recoding memory	32G
Working temp.	-30℃/55℃
Waterproof	IP67
Drop test	1.5m
interface	USB2.0
Power	+12v~+16v
Working time/cycle	4h(20℃)
Battery type	Li-ion
External power	+24v
Tripod connection	1/4‘
Included cables	Batteries,1charger,AC/DC adaptor,connection cable,hard case

Features:

1.User friensly,easy to operate

2.Different palette ooptions for the image display make it easier to detect and identify targets in different circumstances
